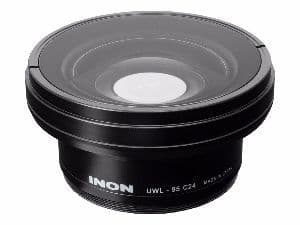

UWL-95 C24 M67 Wide Conversion Lens (Type1)

Wide conversion lens designed for 24 mm (35 mm equiv.) digital camera with versatile M67 screw mount and M52 screw mount

​​​​Maximum view angle is 95° underwater/159° in air (*1).  Combination with optional super wide option Dome Lens Unit IIIA/Dome Lens Unit IIIG further increases view angle underwater up to 141° (*1).

Totally renewed optical design effectively suppresses flare/ghost even in backlit condition to provide sharp and high quality image. The UWL-95 C24 is designed to support a camera of large 1.0 type sensor with bright master lens. Using the UWL-95 C24 can dramatically reduce minimum focusing distance enabling to get subject on the lens in focus both on land and underwater.

The lens mount is versatile M67 or M52 mount. The M67 version has two types either of Type1 or Type2 having different threaded thickness to bring out optimal performance of different combined master lens. Optional M67 Type1 Screw Ring for UWL-95 C24 or M67 Type2 Screw Ring for UWL-95 C24 is available to purchase making it easy to modify from M52 Mount to M67 Mount or convert original M67 type to the other type(*2).

 As of April 2020, compatible camera system is

·UWL-95 C24 M67 Type1        Sony RX100M3, M4, M5, M5A/MPK-URX100A

·UWL-95 C24 M52        Olympus TG-6/PT-059, TG-5/PT-058, TG-3,4/PT-056

(*1) Actual angle of view differs depending on camera/housing to use.

 (*2) Depending on usage, original screw ring could be anchored due to salt build-up.  If you find any difficulties to remove original screw ring, do not proceed self modification and consult your purchasing dealer.



 UWL-95 C24 specifications

 UWL-95 C24 M52

·Outer diameter                φ90.0 mm/3.5 in

·Length                    48.2 mm/1.9 in

·Weight                    [air] 605 g/21.3 oz  [underwater] approx.388 g/13.7 oz

·Mount system                INON M52 Mount

·Depth rating                 60 m/196.9 ft

·Material                Corrosion-resistant aluminum alloy

·Surface finishing            Rigid black alumite

·Glass/Coating                 Optical glass/both side anti-reflection coating

·Lens construction/magnification        3 groups 4 elements/0.63 (aforcal)

·Max. view angle (*1)            [underwater] approx. 95°, [air] 159.0°



UWL-95 C24 M67 Type1/Type2

·Outer diameter                φ90.0 mm/3.5 in

·Length                    48.2 mm/1.9 in

·Weight                    [air] 618 g/21.8 oz  [underwater] approx.396 g/14.0 oz

·Mount system                INON M67 Mount

·Depth rating                 60 m/196.9 ft

·Material                Corrosion-resistant aluminum alloy

·Surface finishing            Rigid black alumite

·Glass/Coating                 Optical glass/both side anti-reflection coating

·Lens construction/magnification        3 groups 4 elements/0.63 (aforcal)

·Max. view angle (*1)            [underwater] approx. 95°, [air] 159.0°
